Weave Types

PLAIN WEAVE. Each warp wire and shute wire pass over one and under the next adjacent wire; Wires are crimped in the weaving operation.

PLAIN DUTCH WEAVE. Warp wires are generally larger than the shute wires. Shute wires are closely spaced to provide a dense weave with wedge shaped openings.

REVERSE DUTCH WEAVE. Woven in which the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain and twilled Dutch weaves.

TWILLED WEAVE. Each warp wire and each shute wire pass successively over two and under the next adjacent pair of wires.

TWILLED DUTCH DOUBLE WEAVE.
Same as twilled Dutch except the shute wires are smaller and overlap, thus increasing the number of shute wires in a linear inch to provide greater density.

Crimp

CRIMP. Corrugations in wires to permit locking them into place when perpendicular to each other.

DOUBLE CRIMP. Wire pre-crimped prior to weaving; Warp and shute wires lay in each crimp.

DOUBLE INTERMEDIATE CRIMP. Usually the warp wires lay in every crimp in the shute wires, and the shute wires lay in every other crimp in the warp wires.

INTERMEDIATE CRIMP. Warp and shute wires lay in every other crimp.

Mesh

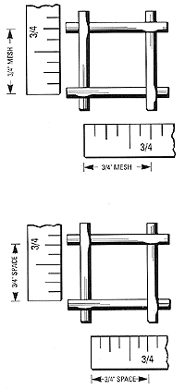

MESH. Number of openings in a linear inch measured from the center of one wire to a point 1″ distant.

COUNT (also Mesh). Number of openings in a linear inch.

MICRONIC MESH. A woven filter cloth with a nominal micron rating as low as 2.0 with excellent flow characteristics.

SQUARE MESH. Wire cloth with mesh count the same in both directions.

CALENDERED WIRE CLOTH. Wire cloth that has passed through a pair of heavy rollers to reduce the thickness of the fabric, or to flatten the intersection to provide a smooth surface.

CLEAR OPENING (also Space). Space between adjacent parallel wires.

FILL WIRES (also Shute Wires). Wires running across the width of the cloth as woven.

GAUGE. Wire size. To avoid possible errors, specify wire diameter in decimal sizes rather than gauge numbers.

LONG SLOT. Weave where shute wires are arranged in clusters to provide rectangular openings.

MARKET GRADES. Most commonly used sizes of industrial wire cloth specifications selected for general purpose work.

OPEN AREA. The proportion of open space in a total screen area; Expressed as a percentage.

OPENING (Space). Clear opening between adjacent parallel wires; Not affected by diameter of the wire.

RECTANGULAR OPENINGS. Long dimension of an opening can be specified as parallel or perpendicular to the length.

SELVAGE. Finished edges running the length of the roll to prevent unraveling.

SHUTE WIRES. Wires running across the width of the cloth as woven.

WARP WIRES. Wires running the length of the cloth as woven.

WELDED WIRE CLOTH. Warp and shute wires lay flat (no crimp); Welded at intersections.
